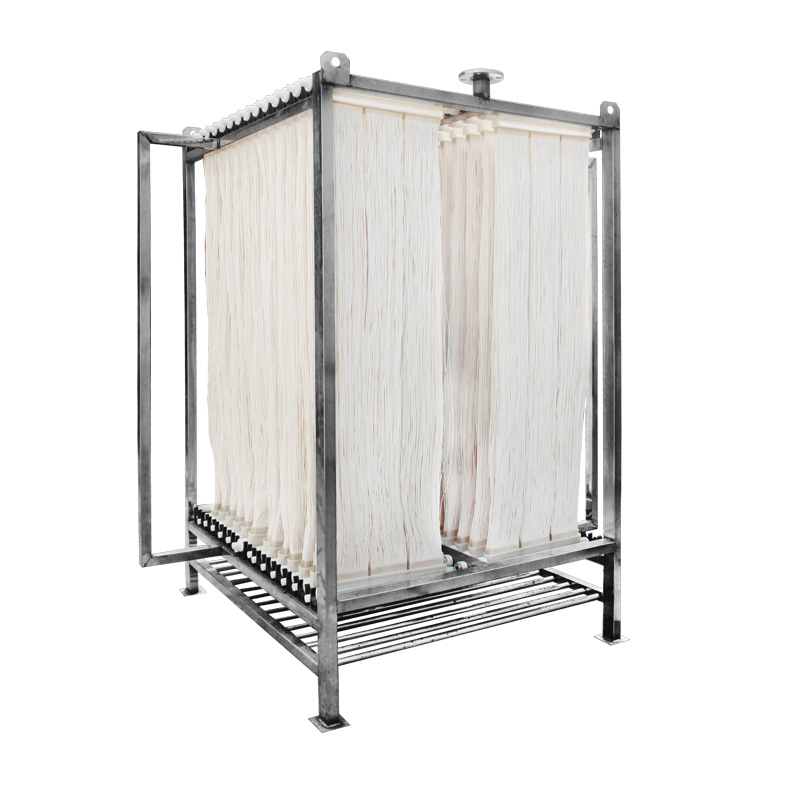

MBR BOX
  • MBR BOX
  • Online inquiry
    Detailed content

    Zhejiang jeffel Environmental Science and Technology Co., Ltd.was specializes in the R&D, industry manufacture, engineering application and market promotion of the materials and products used for filtration, separation and purification. Since its inception, which has always focused on research and development to promote a variety of new materials and products were separated by filtration, the polymer separation membrane materials and equipment.


    膜箱规格尺寸 | Film Box Size


    膜箱型号

    Type

    日处理量(m3/d)

    Daily Capacity

    总膜面积(m2)

     Total Area

    外形尺寸(L×W×H,mm)

    Specification

    模式

    Mode

    UW50b

    50144650x1320x1600可拆卸膜箱/便捷式膜箱
    UW100b1002641100x1320x1600可拆卸膜箱/便捷式膜箱
    UW130b1303121280x1280x2000可拆卸膜箱/便捷式膜箱
    UW150b1503601360x1050x1580可拆卸膜箱/便捷式膜箱
    UW200c2005201280x1320x2400可拆卸膜箱
    UW300b3007501460x1320x2900便捷式膜箱
    UW400c4001020
    1650x1500x3000可拆卸膜箱
    UW500b50012922050x1500x3000便捷式膜箱
    UW550b55013002230x1330x3100便捷式膜箱


                                                                    MBR膜组件参数 | MBR Membrane Components Specifications





                               性能

                            Performance


    设计通量

    Design Flux

    10-25L/(m2·h)根据水质不同适当选取

    Select According to Different Water Quality

    产水浊度

    Produced Water Turbidity

    ≤1NTU
    TSS测不出

    产水大肠杆菌

    Escherichia Coli In Producing Water

    10FCU/100ml

    污泥浓度

    Mixed Liquid Suspended Solids(MLSS)

    4000—12000mg/L






                               规格

                          Specifications


    膜丝材质

    Membrane Filament Material

    PVDF材质(带衬工艺)

    PVDF (with liner)

    内径/外径

    Inside Diameter/outer Diameter

    1.0/2.2mm

    粘结材料

    Bonding Material

    聚氨酯/环氧树脂

    PU/Epoxy Resin

    连接管材质

    Connecting Pipe Material

    ABS

    平均孔径

    Mean Pore Size

    0.03um

    接口尺寸

    Size Of Interface

    DN32/G1/2快插






                              使用条件

                        Operating Condition

    工作温度

    Operating Temperature

    15—35℃

    设计工作压力

    Design Operation Pressure

    -80Kpa—0

    PH耐受范围

    Ph Tolerance Scope

    2-12

    曝气量

    Aeration Rate

    膜面积:2.5L/(m2·min)

    设计反洗压力

    Design Backflush Pressure

    0.05-0.2Mpa




                              维护性清洗

                         Maintenance Cleaning

    清洗频率

    Cleaning Frequency

    1次/周

    Once a week

    清洗时间

    Cleaning Time

    30-60min/ time

    清洗药剂

    Cleaning Agent

    次氯酸钠 Sodium Hypochlorite: 200-500mg/L;

    柠檬酸/草酸 Citric Acid:1000-2000mg/L




                              恢复性清洗

                         Restorative Cleaning

    药物清洗频率

    Cleaning Frequency by Pharmaceutical

    1次/3个月或跨膜压差达到50Kpa时

    Once three months or Trans-membrane Pressure reaches 50Kpa

    清洗时间

    Cleaning Time

    1 次/6小时

    Once 6 hours

    清洗药剂浓度

    Cleaning Agent Concentration

    次氯酸钠 Sodium Hypochlorite: 2000mg/L;

    柠檬酸/草酸 Citric Acid: 2000-4000mg/L



                                                                       MW系列膜片信息 | Information of MW series Membrane

    规格

    Specifications

    膜面积

    Membrane Area

    膜片有效长度

    Membrane Effective Length /mm

    膜丝数量

    Membrane Filament Quantity

    MW12b12m²10701560
    MW16b16m²14801560
    MW20b20m²18001560
    MW25b25m²22901560
    MW36c36m²18402880
    MW15d15m²15001440
    MW18d18m²18001440
    MW23d23m²23001440
    MW33e33m²18302660
